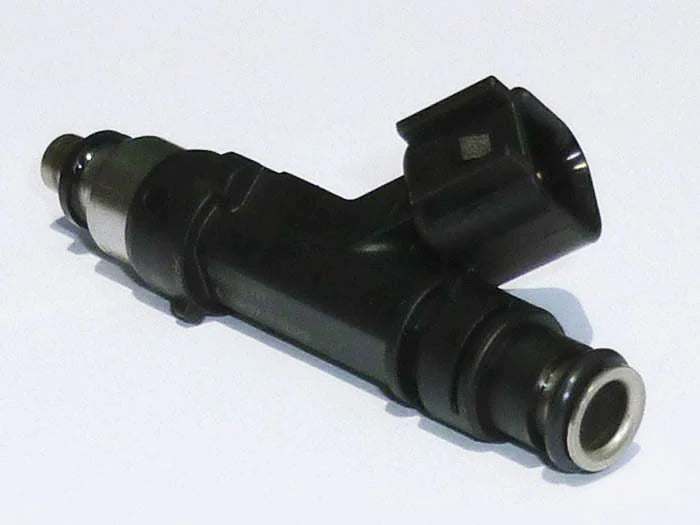

IN1000 Bosch EV14 Fuel Injector Set Honda OBD0 OBD1 B18 B20 D16 H22 F22 H23A F20B 1000cc Injectors

Flowrate at 43.5psi: 1000cc Gasoline, 900cc N-Heptane

Quantity: Four (4)

Type: Bosch EV14

Length o-ring to o-ring: 60mm (long)

Inlet diameter: 11mm (small)

Connector: your choice of EV6 clips, wireless USCAR to OBD0/OBD1 adapters, or wireless USCAR to OBD2 adapters

Fits: Most 88-01 Honda/Acura B-D-F-H-series motors with 75mm length injectors. 88-00 Honda Civic, 88-01 Acura Integra, 88-01 Honda Prelude, 90-01 Honda Accord. Some Civic & Accord models with secondary air injection & shorter injectors (65mm length) will require longer fuel rail studs from the Dealership.

NOTE: Choose the SHORT options for H23A, F20B, and JDM F23A motors that use shorter AP1-style injectors (65mm length). The tall injectors will work if longer fuel rail studs & shims are used.

The IN1000 fuel injector creates a single wide spray cone of 25 degrees. This is excellent for cylinder heads with single or multiple intake valves in naturally asprirated and force inducted applications. All injector sets are balanced to +/- 1% at static and dynamic flow rates.
